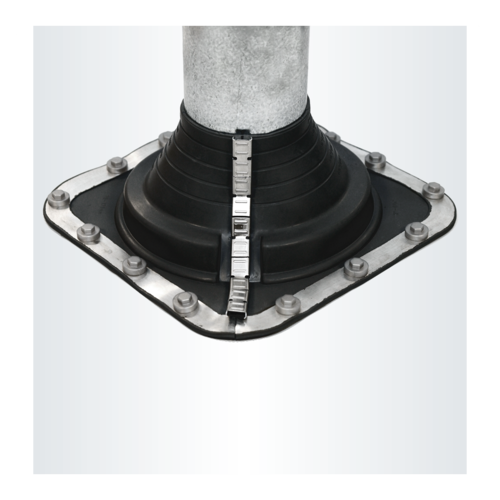

DEKTITE® Combo Set

combo-new

Specification

  • Applications

    • For waterproofing pipes on corrugated metal or fibre cement roofs
    • For subsequent waterproofing of pipes

    Notice

    Use bulbtite rivets for corrugated fibre-cement sheets. For retrofitting see processing guidelines for Dektite® Retrofit. Profile height max. 45 mm.

  • Benefits

    • Perfect seal on roof and facade
    • No interference of thermal elongation of pipes
    • No fatigue fractures
    • Ideal for repairs of existing pipe systems

  • Included in delivery

    • 1 pipe flashing
    • 1 cartridge of EJOPLAST joint sealant
    • 1 EJOT® self-drilling screw set / optional EJOT® Bulbtite rivet set
    • 1 clips set

Filter

Selected filters

    Orderidentifier Article Number For pipe Ø mm For pipe Ø mm Combo Base mm Roof pitch ° Roof pitch ° Combo Unit
    8201104704 5.0 - 60.0 400-500
    500-550
    600-660
    730-750     		139 x 139 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    5.0 - 60.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    139 x 139
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    80.0
    Number of screws
    8
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    8201304704 5.0 - 127.0 400-500
    500-550
    600-660
    730-750     		218 x 218 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    5.0 - 127.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    218 x 218
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    80.0
    Number of screws
    16
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    8201404704 75.0 - 175.0 400-500
    500-550
    600-660
    730-750     		285 x 285 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    75.0 - 175.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    285 x 285
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    80.0
    Number of screws
    20
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    8220304704 125.0 - 230.0 400-500
    500-550
    600-660
    730-750     		365 x 365 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    125.0 - 230.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    365 x 365
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    80.0
    Number of screws
    28
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    8230304704 150.0 - 280.0 400-500
    500-550
    600-660
    730-750     		454 x 454 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    150.0 - 280.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    454 x 454
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    310.0
    Number of screws
    32
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    8250304704 240.0 - 503.0 400-500
    500-550
    600-660
    730-750     		685 x 685 0.0 - 40.0 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    240.0 - 503.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    685 x 685
    Roof pitch
    0.0 - 40.0
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    310.0
    Number of screws
    40
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    Unit
    DC110 8270004704 350.0 - 760.0 400-500
    500-550
    600-660
    730-750     		1000 x 1040 up to 45
    up to 30
    up to 15
    up to 6

    Specifications

    For pipe Ø mm
    350.0 - 760.0
    For pipe Ø mm Combo
    400-500</br>500-550</br>600-660</br>730-750
    Base mm
    1000 x 1040
    Roof pitch
    Roof pitch ° Combo
    up to 45</br>up to 30</br>up to 15</br>up to 6
    Cartridge capacity
    310.0
    Number of screws
    70/10
    Contents Screws / Brackets Pieces
    70/10
    Orderidentifier
    DC110
    Unit
