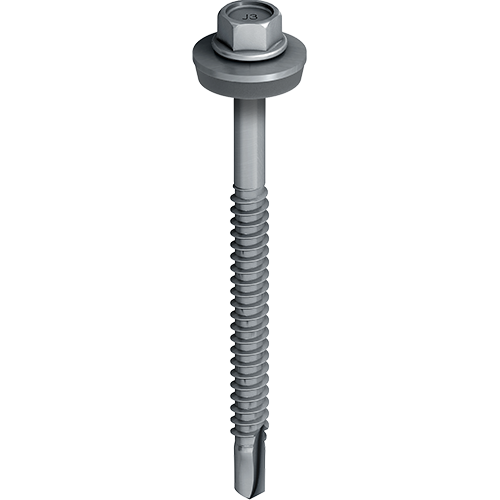

EJOT® self-drilling screw JT3-6-5.5

Specification

  • Applications

    • Fastening profiled steel sheets to 1.5 – 4 mm steel substructure
    • Fastening profiled aluminium sheets and sandwich panels to 1.5 – 4 mm steel substructure
  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 5.0 mm / 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
    JT3-6-5.5x25-E16 3572211361 5.5 16 25.0 0.0 - 7.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x25-E16
    Unit
    500
    JT3-6-5.5x50-E16 3592811361 5.5 16 50.0 0.0 - 31.0 Stainless Steel 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.0 - 31.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x50-E16
    Unit
    250
    JT3-6-5.5x70-E16 3593911361 5.5 16 70.0 22.0 - 51.0 Stainless Steel

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    70.0
    Clamp thickness
    22.0 - 51.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x70-E16
    Unit
    JT3-6-5.5x130-E16 3596311361 5.5 16 130.0 82.0 - 111.0 Stainless Steel

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    130.0
    Clamp thickness
    82.0 - 111.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x130-E16
    Unit
    JT3-6-5.5x90-E16 VE100 6596111361 5.5 16 90.0 42.0 - 71.0 Stainless Steel

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    90.0
    Clamp thickness
    42.0 - 71.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x90-E16 VE100
    Unit
