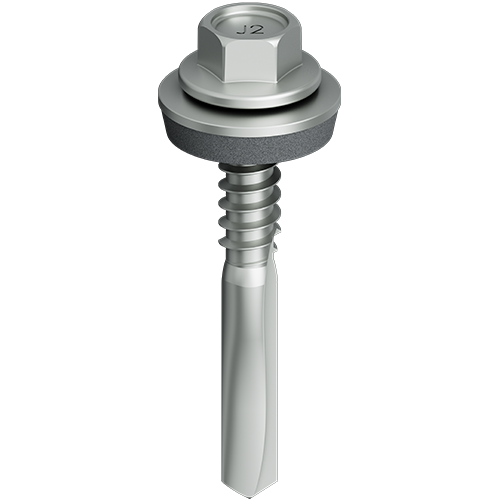

EJOT® self-drilling screw JT2-18-5.5 F12 EJOGUARD

JT2-18-5,5_Pos2

Specification

  • Applications

    • Fastening profiled steel sheets to 4 – 16 mm steel substructure

  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 16.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Unit
JT2-18-5.5x40-V16 F12 EJOGUARD 3914021997 5.5 16 500

Specifications

ø
5.5
Ø Sealing Washer mm
16
Length
40.0
Clamp thickness
0.0 - 12.0
Fastener material
Carbon Steel
Orderidentifier
JT2-18-5.5x40-V16 F12 EJOGUARD
Unit
500
