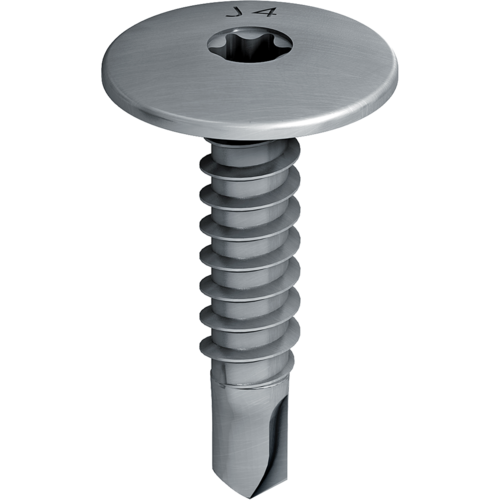

EJOT® self-drilling screw JT4-LT-3-5.5x25 KD16

JT4-LT-3-5,5x25_Pos2

Specification

  • Applications

    • For fixing facade panels to 1.5-3.0 mm aluminium substructures
    • Can be combined with LT fixed and floating point sleeves

    Note

    Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • A2 stainless steel
    • Pan head

    Benefits

    • To cover slotted holes and large pre-drill diameters
    • Also available in RAL lacquering
    • Flat screw head for aesthetic facade design
    • Wobble-free fastening by using the LT tool



  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity (tI pre-drilled) + tII: 1.5-3.0 mm
    • Drive: Hexalobular drive T25
    • Head diameter: 16 mm
    • Head height: 2.0 mm
