EJOT® Solar Fastener set JT3-SB-3-8.0 xL with FZD fibre cement seal

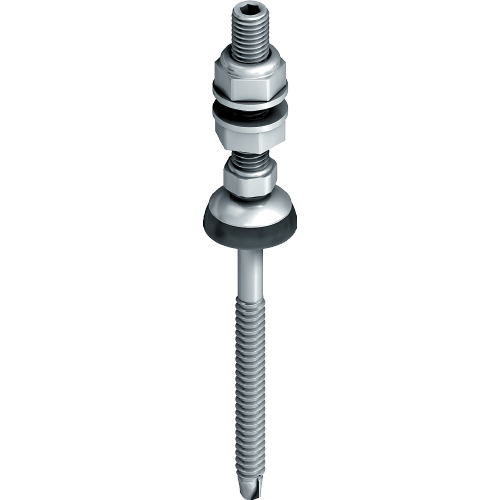

JT3-SB-8-0-FZD
Produktbild2

Specification

  • Applications

    • For fastening elevated solar and photovoltaic installations to steel substructures 1.5 - 3 mm
    • Can also be used for steel substructure ≥ 3.0 mm if predrilled
    • For high-strength steel substructures up to S450GD
    • Suitable for corrugated fibre cement profile sheets

  • Properties

    • A2 stainless steel with hardened steel drill point
    • In set with FZD fibre cement seal

    Benefits

    • Quick retrofitting on existing installations
    • Fastening without pre-drilling (substructure < 3 mm)
    • Extremely safe fastening with direct load transfer into the substructure
    • No additional holes in the roofing membrane
    • Suitable for high-strength steels
    • Consistent installation depth
    • Use of proven sealing systems
    • Durable seal due to solid attachment point
    • Minimum installation and tool requirements
    • Project-related initial sizing possible

  • Technical specifications

    • Screw diameter: 8.0 mm
    • A/F5 hexagon drive
    • Installation rotation speed: max. 1300 1/min

    Notice
    The solar fastener components are tailored to your project. Further versions upon request

Order information: Also available with screw nuts with locking serrations DIN EN ISO 1661. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089.

Filter

Selected filters

    Orderidentifier Article Number Length mm Clamping thickness mm Unit
    Set JT3-SB-3-8.0x85/50 E16 3340891905 85.0 18.0 - 60.0 25

    Specifications

    Length
    85.0
    Clamping thickness
    18.0 - 60.0
    Orderidentifier
    Set JT3-SB-3-8.0x85/50 E16
    Unit
    25
    Set JT3-SB-3-8.0x85/50 FZD 3340898905 85.0 17.0 - 58.0 25

    Specifications

    Length
    85.0
    Clamping thickness
    17.0 - 58.0
    Orderidentifier
    Set JT3-SB-3-8.0x85/50 FZD
    Unit
    25
    Set JT3-SB-3-8.0x115/50 E16 3341191905 115.0 48.0 - 90.0 25

    Specifications

    Length
    115.0
    Clamping thickness
    48.0 - 90.0
    Orderidentifier
    Set JT3-SB-3-8.0x115/50 E16
    Unit
    25
    Set JT3-SB-3-8.0x115/50 FZD 3341198905 115.0 47.0 - 88.0 25

    Specifications

    Length
    115.0
    Clamping thickness
    47.0 - 88.0
    Orderidentifier
    Set JT3-SB-3-8.0x115/50 FZD
    Unit
    25
    Set JT3-SB-3-8.0x155/50 E16 3341591905 155.0 88.0 - 130.0 25

    Specifications

    Length
    155.0
    Clamping thickness
    88.0 - 130.0
    Orderidentifier
    Set JT3-SB-3-8.0x155/50 E16
    Unit
    25
    Set JT3-SB-3-8.0x155/50 FZD 3341598905 155.0 87.0 - 128.0 25

    Specifications

    Length
    155.0
    Clamping thickness
    87.0 - 128.0
    Orderidentifier
    Set JT3-SB-3-8.0x155/50 FZD
    Unit
    25
    Set JT3-SB-3-8.0x195/50 E16 3341991905 195.0 128.0 - 170.0 25

    Specifications

    Length
    195.0
    Clamping thickness
    128.0 - 170.0
    Orderidentifier
    Set JT3-SB-3-8.0x195/50 E16
    Unit
    25
    Set JT3-SB-3-8.0x195/50 FZD 3341998905 195.0 127.0 - 168.0 25

    Specifications

    Length
    195.0
    Clamping thickness
    127.0 - 168.0
    Orderidentifier
    Set JT3-SB-3-8.0x195/50 FZD
    Unit
    25
