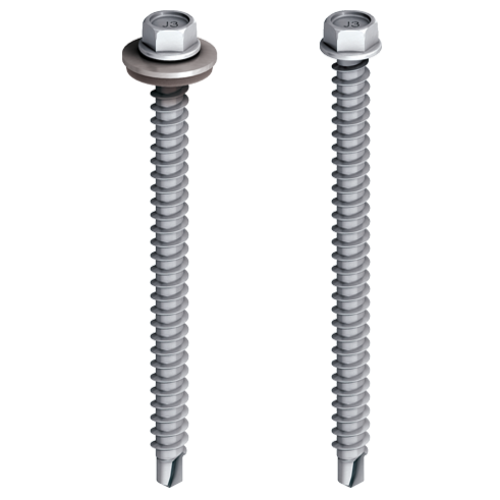

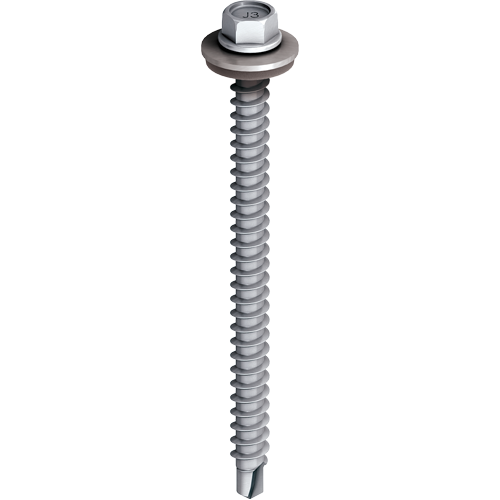

EJOT® self-drilling screw JT3-2-6.5

JT3-2-6,5_nw_2016

Specification

Applications
- Fastening profiled steel and aluminium sheets, sandwich panels and roofing sheets to timber substructure
Properties
- A2 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
Technical specifications
- Diameter: 6.5 mm
- Drilling capacity t_I + t_II: 2.0 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1500 rpm

Downloads

Brazilian Portuguese

DoP ETA-10/0200 JT3.pdf 3 MB
DoP ETA-13/0177 JT3.zip 2 MB

English

ETA-10/0200.pdf 28 MB
DoP ETA-10/0200 JT3.pdf 3 MB
DoP ETA-13/0177 JT3.zip 2 MB
Product data sheet.pdf 272 KB
ETA-13/0177.pdf 25 MB
EPD Self-tapping screws.pdf 1 MB
EJOT_man_ilb-schrauben_de_de_global.pdf 352 KB

Orderidentifier	Article Number	ø mm	Ø Sealing Washer mm	Length mm	Clamp thickness mm	Fastener material	Unit
JT3-2-6.5x100-E16	3598111321	6.5	16	100.0	16.0 - 50.0	Stainless Steel	100
Specifications ø 6.5 Ø Sealing Washer mm 16 Length 100.0 Clamp thickness 16.0 - 50.0 Fastener material Stainless Steel Orderidentifier JT3-2-6.5x100-E16 Unit 100
