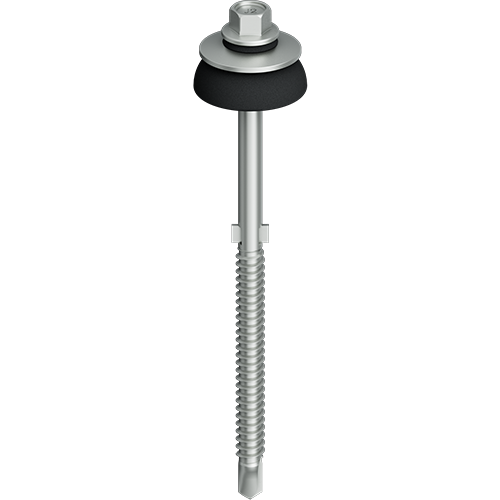

EJOT® self-drilling screw JT2-FZ-6-6,3 EJOGUARD

JT2-FZ-6-6,3

Specification

  • Applications

    • Fastening corrugated fibre cement sheet 177/51 to steel substructure 1.5–6 mm

    Note

    For the dimensioning and the use of fastening materials please note the manufacturer's instructions for use as well as the national approvals.

  • Properties

    • Case-hardened steel
    • Climadur coated-high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • Pre-assembled FZD sealing washer
    • A2 stainless steel washer
    • Screw wings save additional drilling into the corrugated slabs
    • Reduced forcing tension

  • Technical specifications

    • Diameter: 6.3 mm
    • Drilling capacity tII: 6.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm
Orderidentifier Article Number ø mm Length mm Unit
JT2-FZ-6-6.3x110-FZD 3512275664 6.3 110.0

Specifications

ø
6.3
Length
110.0
Fastener material
Carbon Steel
Orderidentifier
JT2-FZ-6-6.3x110-FZD
Unit
