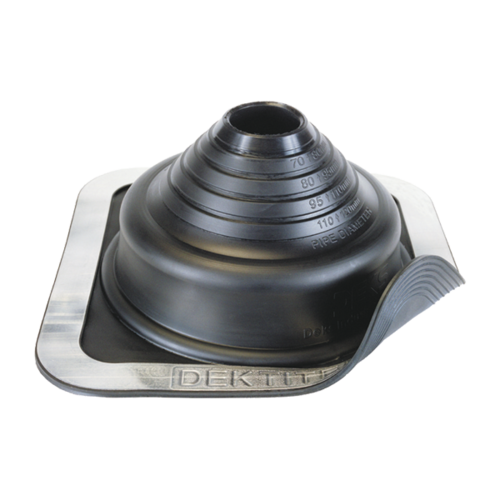

DEKTITE® Square (Set)

Rohrmanschette_Dektite_Square_Foto1
Rohrmanschette_Dektite_Square_Foto2

Specification

  • Applications

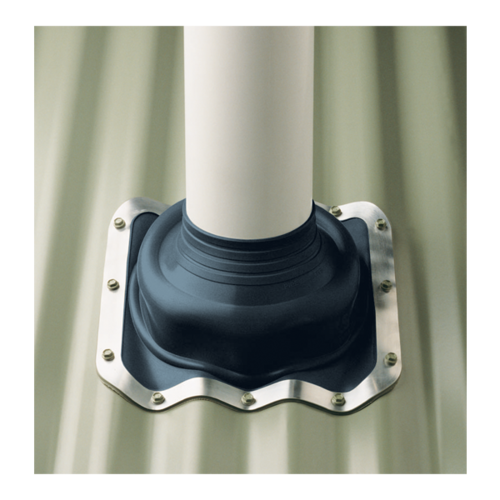

    • For waterproofing pipes on trapezoidal or sinusoidal metal roofs or fibre cement roofs
    • Made of silicone for higher temperatures up to +250 °C upon request

    Notice

    Use Bulbtite rivets for corrugated fibre-cement sheets. Profile height max. 45 mm.

  • Benefits

    • Perfect seal on roof and facade
    • No interference of thermal elongation of pipes
    • No fatigue fractures

  • Included in delivery

    • 1 Pipe flashing
    • 1 cartridge of EJOPLAST joint sealant
    • 1 EJOT® self-drilling screw set / optional EJOT® Bulbtite rivet set

Filter

Selected filters

    Orderidentifier Article Number For pipe Ø mm Base mm Roof pitch ° Cartridge capacity ml ml Number of screws Unit
    DFE 100 8200004704 0.0 - 35.0 100 x 100 0.0 - 60.0 80.0 8

    Specifications

    For pipe Ø mm
    0.0 - 35.0
    Base mm
    100 x 100
    Roof pitch
    0.0 - 60.0
    Cartridge capacity ml
    80.0
    Number of screws
    8
    Orderidentifier
    DFE 100
    Unit
    DFE 101 8200104704 5.0 - 55.0 139 x 139 0.0 - 35.0 80.0 8

    Specifications

    For pipe Ø mm
    5.0 - 55.0
    Base mm
    139 x 139
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    80.0
    Number of screws
    8
    Orderidentifier
    DFE 101
    Unit
    DFE 103 8200304704 5.0 - 127.0 221 x 221 0.0 - 35.0 80.0 16

    Specifications

    For pipe Ø mm
    5.0 - 127.0
    Base mm
    221 x 221
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    80.0
    Number of screws
    16
    Orderidentifier
    DFE 103
    Unit
    DFE 104 8200404704 75.0 - 175.0 280 x 280 0.0 - 35.0 80.0 20

    Specifications

    For pipe Ø mm
    75.0 - 175.0
    Base mm
    280 x 280
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    80.0
    Number of screws
    20
    Orderidentifier
    DFE 104
    Unit
    DFE 106 8200604704 125.0 - 230.0 363 x 363 0.0 - 35.0 80.0 28

    Specifications

    For pipe Ø mm
    125.0 - 230.0
    Base mm
    363 x 363
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    80.0
    Number of screws
    28
    Orderidentifier
    DFE 106
    Unit
    DFE 107 8200704704 150.0 - 300.0 456 x 456 0.0 - 35.0 310.0 32

    Specifications

    For pipe Ø mm
    150.0 - 300.0
    Base mm
    456 x 456
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    310.0
    Number of screws
    32
    Orderidentifier
    DFE 107
    Unit
    DFE 109 8200904704 230.0 - 508.0 681 x 681 0.0 - 35.0 310.0 40

    Specifications

    For pipe Ø mm
    230.0 - 508.0
    Base mm
    681 x 681
    Roof pitch
    0.0 - 35.0
    Cartridge capacity ml
    310.0
    Number of screws
    40
    Orderidentifier
    DFE 109
    Unit
