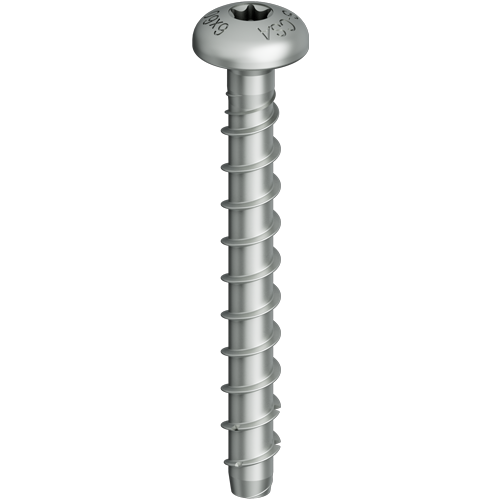

EJOT® Concrete screw JC6-FR stainless steel A4
Specification
-
Applications
- For embedment in cracked and non-cracked concrete C20/25 – C50/60
- Permanently wet indoor use
- Outdoor use, including industrial and maritime environments
- Fastening of e.g.:
- Canopies
- Gates
- Shelving systems
- Cable trays
- Handrails and railings
- Stadium seating
- Impact protection / ram protection
- Timber construction accessories (e.g. brackets, ...)
- ...
-
Properties
- Stainless steel A4 with hardened steel tip
- Pan head and T-drive
- ETA approved for cracked and non-cracked concrete C20/25 – C50/60
- Concrete screws are intended for through installations
- No predefined tightening torque
Benefits
- Requires only a small drill hole
- Allows small spacing and edge distances
- The screw is fully removable
Base materials
Approved for
- Cracked concrete
- Non-cracked concrete
-
Technical specifications
- Drive: T30
- Fireresistenz: R120
- Stainless steel
Filter
Selected filters
| Orderidentifier | Article Number | Embedment depth hef≥ mm | Length mm | Drill hole depth mm | Pilot Hole Ø mm | Unit |
|---|---|---|---|---|---|---|
| JC6-FR 6x50/5 T30 A4 | 9650071993 | 45.0 | 50.0 | 55.0 | 6.0 | 100 |
Specifications
|
||||||
| JC6-FR 6x60/15/5 T30 A4 | 9650071994 | 45.0 | 60.0 | 55.0 | 6.0 | 50 |
Specifications
|
||||||
| JC6-FR 6x80/35/25 T30 A4 | 9650071996 | 45.0 | 80.0 | 55.0 | 6.0 | 50 |
Specifications
|
