Mesh sleeve USF

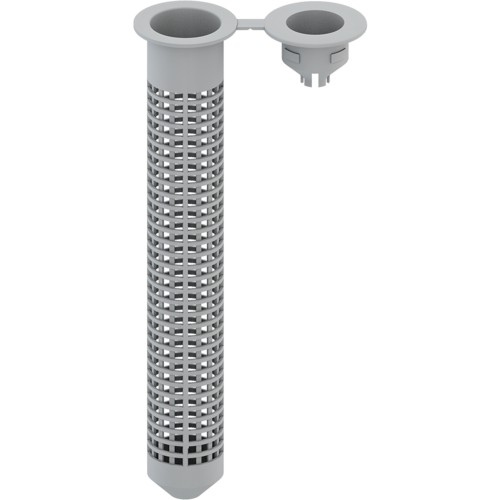

Siebhuelse_Pos2

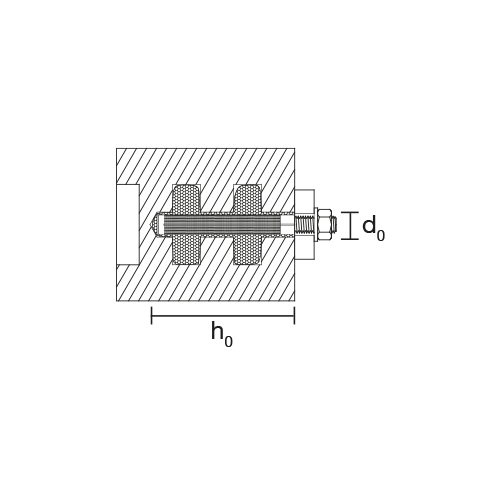

Produktbild2

Specification

  • Applications

    • For embedment in perforated brick

  • Properties

    • Guarantees exact calibration of threaded rod

  • Note

    For planning and processing, please observe ETA-16/0089

Filter

Selected filters

    Orderidentifier Article Number Length mm Thread diameter mm Hole depth

    h1 ≥ mm

    		suitable for thread Unit
    M8 10 Mesh sleeve USF 12x80 9571012080 80.0 12.0 85.0 M8 10

    Specifications

    Length
    80.0
    Thread diameter
    12.0
    Hole depth

    h1 ≥

    85.0
    suitable for thread
    M8
    Orderidentifier
    M8 10 Mesh sleeve USF 12x80
    Unit
    10
    M8 / M10 10 Mesh sleeve USF 16x85 9571016085 85.0 16.0 90.0 M8, M10

    Specifications

    Length
    85.0
    Thread diameter
    16.0
    Hole depth

    h1 ≥

    90.0
    suitable for thread
    M8, M10
    Orderidentifier
    M8 / M10 10 Mesh sleeve USF 16x85
    Unit
    M8 / M10 10 Mesh sleeve USF 16x130 9571016130 130.0 16.0 135.0 M8, M10

    Specifications

    Length
    130.0
    Thread diameter
    16.0
    Hole depth

    h1 ≥

    135.0
    suitable for thread
    M8, M10
    Orderidentifier
    M8 / M10 10 Mesh sleeve USF 16x130
    Unit
    M12 / M16 10 Mesh sleeve USF 20x85 9571020085 85.0 20.0 90.0 M12-M16 10

    Specifications

    Length
    85.0
    Thread diameter
    20.0
    Hole depth

    h1 ≥

    90.0
    suitable for thread
    M12-M16
    Orderidentifier
    M12 / M16 10 Mesh sleeve USF 20x85
    Unit
    10
    M12 / M16 10 Mesh sleeve USF 20x130 9571020130 130.0 20.0 135.0 M12-M16 10

    Specifications

    Length
    130.0
    Thread diameter
    20.0
    Hole depth

    h1 ≥

    135.0
    suitable for thread
    M12-M16
    Orderidentifier
    M12 / M16 10 Mesh sleeve USF 20x130
    Unit
    10
