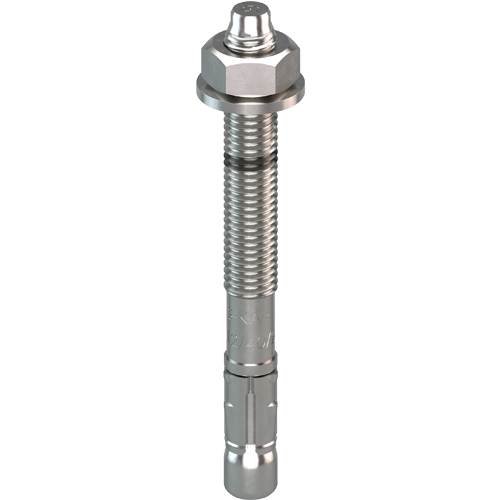

EJOT® BA-V Plus
Specification
-
Applications
- For embedment in cracked and non-cracked concrete ≥ C20/25
- Also suitable for natural stone
- Dry indoor areas
- For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures

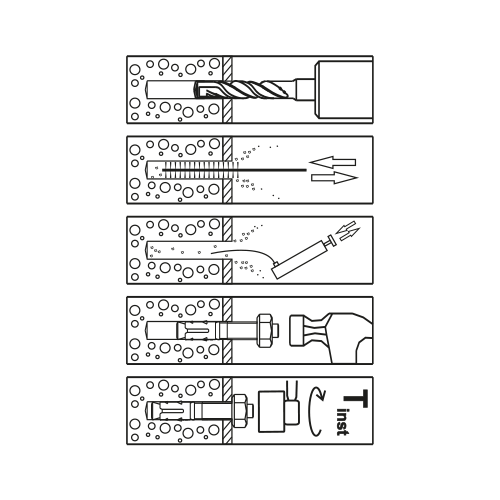

- For pre-, push-through and distance installations
- Seismic approval category C2 (M10-M16)
-
Properties
- Galvanized zinc-plated steel
- Approval for concrete, Option 1
- Fire restistance classes F30, F60, F90, F120
Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.
-
Benefits
- Completely new design
- M10 and M12 with 2 different anchorage depths
M10: 40 mm and 60 mm
M12: 50 mm and 70 mm - Colored setting depth marking on the thread
- Anchor length letter code marked on the bolt head
- Installation also in thinner concrete than today with M8 and M10
M8: 80 mm vs. 100 mm
M10: 100 mm vs. 120 mm - 30 – 50% fewer turns for the assembly torque
Filter
Selected filters

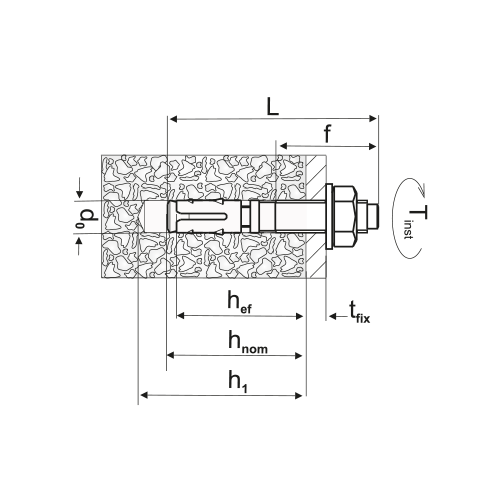

Orderidentifier | Article Number | ø mm | Length mm | Clamping thickness tfix≤ mm |
Hole depth h1 ≥ mm |
Unit | |
---|---|---|---|---|---|---|---|
BA-V Plus 8/23/10 | 9650001310 | 8.0 | 75.0 | 23.0 | 47.0 | Carbon Steel | 50 |
Specifications
|
|||||||
BA-V Plus 8/43/30 | 9650001312 | 8.0 | 95.0 | 43.0 | 47.0 | Carbon Steel | 50 |
Specifications
|
|||||||
BA-V Plus 8/63/50 | 9650001314 | 8.0 | 115.0 | 63.0 | 47.0 | Carbon Steel | 50 |
Specifications
|
|||||||
BA-V Plus 8/98/85 | 9650001316 | 8.0 | 150.0 | 98.0 | 47.0 | Carbon Steel | 50 |
Specifications
|
|||||||
BA-V Plus 10/10/- | 9650001323 | 10.0 | 72.0 | 10.0 | 55.0 | Carbon Steel | 40 |
Specifications
|
|||||||
Ba-V Plus 10/30/10 | 9650001325 | 10.0 | 92.0 | 30.0 | 55.0 | Carbon Steel | 40 |
Specifications
|
|||||||
BA-V Plus 10/40/20 | 9650001326 | 10.0 | 102.0 | 40.0 | 55.0 | Carbon Steel | 25 |
Specifications
|
|||||||
BA-V Plus 10/50/30 | 9650001327 | 10.0 | 112.0 | 50.0 | 55.0 | Carbon Steel | 25 |
Specifications
|
|||||||
BA-V Plus 10/70/50 | 9650001329 | 10.0 | 132.0 | 70.0 | 55.0 | Carbon Steel | 25 |
Specifications
|
|||||||
BA-V Plus 10/100/80 | 9650001331 | 10.0 | 162.0 | 100.0 | 55.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/10/- | 9650001338 | 12.0 | 88.0 | 10.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/25/5 | 9650001340 | 12.0 | 103.0 | 25.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/40/20 | 9650001342 | 12.0 | 118.0 | 40.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/50/30 | 9650001343 | 12.0 | 128.0 | 50.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/70/50 | 9650001345 | 12.0 | 148.0 | 70.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/85/65 | 9650001346 | 12.0 | 163.0 | 85.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V Plus 12/100/80 | 9650001347 | 12.0 | 178.0 | 100.0 | 70.0 | Carbon Steel | 20 |
Specifications
|
|||||||
BA-V PLUS 16/5 | 9650001357 | 16.0 | 123.0 | 5.0 | 110.0 | Carbon Steel | 10 |
Specifications
|
|||||||
BA-V PLUS 16/20 | 9650001359 | 16.0 | 138.0 | 20.0 | 110.0 | Carbon Steel | 10 |
Specifications
|
|||||||
BA-V PLUS 16/50 | 9650001362 | 16.0 | 168.0 | 50.0 | 110.0 | Carbon Steel | 10 |
Specifications
|
|||||||
BA-V PLUS 16/60 | 9650001363 | 16.0 | 178.0 | 60.0 | 110.0 | Carbon Steel | 10 |
Specifications
|
EJOT ANCHOR FIX® – Anchor dimensioning made easy
Compare different fastening options, calculate the safest option and thus determine the optimal products for your next project – this is one of the strengths of EJOT ANCHOR FIX®, the free dimensioning software for heavy attachment.
EJOT ANCHOR FIX® software has been developed to make it easier for engineers and planners as well as technicians. The software is constantly being improved and updated to meet the market and user requirements. Once installed, the software updates itself on your end device completely automatically and of course free of charge.
