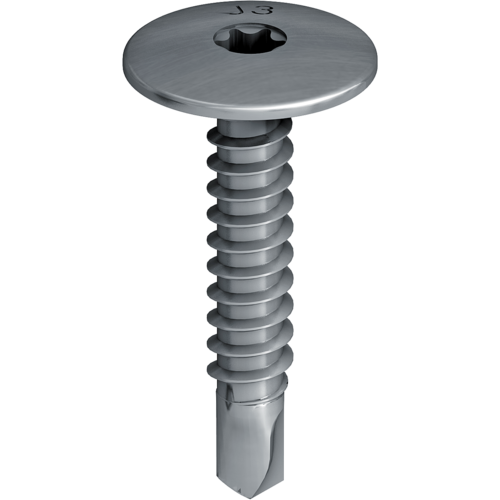

Self-drilling screw JT3-LT-3-5.5x30

JT3-LT-3-5,5x30_Pos2

Specification

  • Applications

    • Fastening facade panels to 1.5-2.5 mm aluminium and steel substructures
    • Can be combined with LT fixed and floating point sleeves

    Note

    Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • A2 stainless steel with hardened drill point
    • Pan head
    Benefits
    • To cover slotted holes and large pre-drill diameters
    • Also available in RAL lacquering
    • Flat screw head for aesthetic facade design
    • Wobble-free fastening by using the LT tool

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity (tI pre-drilled) + tII: 1.5 - 2.5 mm
    • Drive: Hexalobular drive T25
    • Head diameter: 16 mm
    • Head height: 2.0 mm

    Processing information for sliding points on facade claddings
    Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection

Orderidentifier Article Number ø mm Length mm Fastener material Unit
JT3-LT-3-5.5x30 KD16 7384211301 5.5 30.0 Stainless Steel 500

Specifications

ø
5.5
Length
30.0
Fastener material
Stainless Steel
Orderidentifier
JT3-LT-3-5.5x30 KD16
Unit
500
