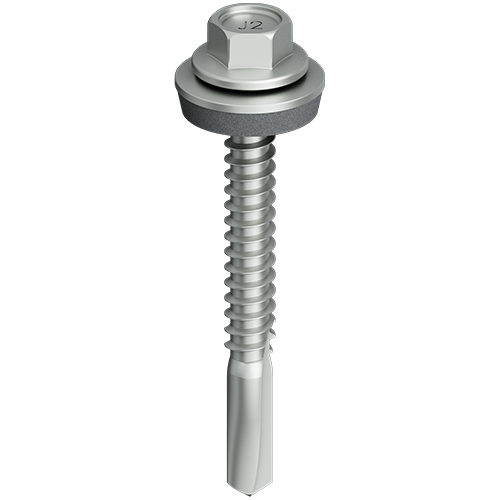

EJOT® self-drilling screw JT2-12-5.5 EJOGUARD


Specification

  • Applications

    • Fastening profiled steel sheets to 4–12 mm steel substructure

  • Properties

    • Case-hardened steel, protected against corrosion
    • High-grade coating to improve the corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-12-5.5x35-V16 3804521997 5.5 16 35.0 0.0 - 10.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    35.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-12-5.5x35-V16
    Unit
    500
    PF JT2-12-5.5X35 EJOGUARD A16 BR98400110 5.5 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    Length
    Clamp thickness
    Fastener material
    Carbon Steel
    Orderidentifier
    PF JT2-12-5.5X35 EJOGUARD A16
    Unit
    500
