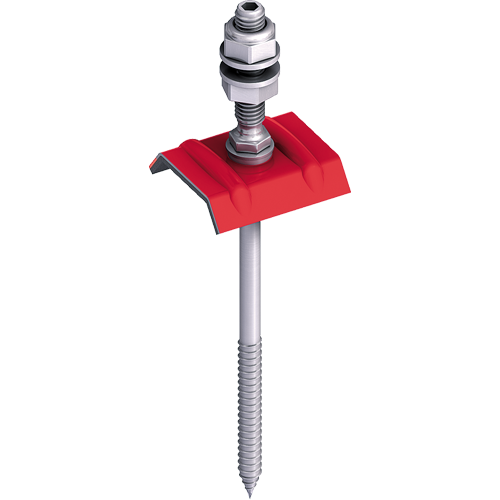

EJOT® Solar Fastener set JA3-SB-8.0xL with E16 + ORKAN storm washer
Specification
-
Applications
- For fastening elevated solar and photovoltaic installations to timber substructures
- Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels
-
Properties
- A2 stainless steel
- In set with sealing washer E16 + ORKAN storm washer
Benefits
- Quick retrofitting on existing installations
- Extremely safe fastening with direct load transfer into the substructure
- No additional holes in the roofing membrane
- Consistent installation depth
- Use of proven sealing systems
- Durable seal due to solid attachment point
- Minimum installation and tool requirements
- Project-related initial sizing possible
-
Technical specifications
- Screw diameter: 8.0 mm
- A/F5 hexagon drive
Notice
The solar fastener components are tailored to your project. Further versions upon request
Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661.
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Thread | Length mm | Unit | ||
|---|---|---|---|---|---|---|---|
| Set JA3-SB-8.0x180/70 E16 | 3151891907 | 8.0 | M10x70 | 180.0 | 129.0 | M10 lock nut | |
Specifications
|
|||||||
| Set JA3-SB-8.0x200/70 E16 | 3152091907 | 8.0 | M10x70 | 200.0 | |||
